Unicorn rigid
PRECISE SINGULATION WITH UTMOST PRECISION PLACEMENT

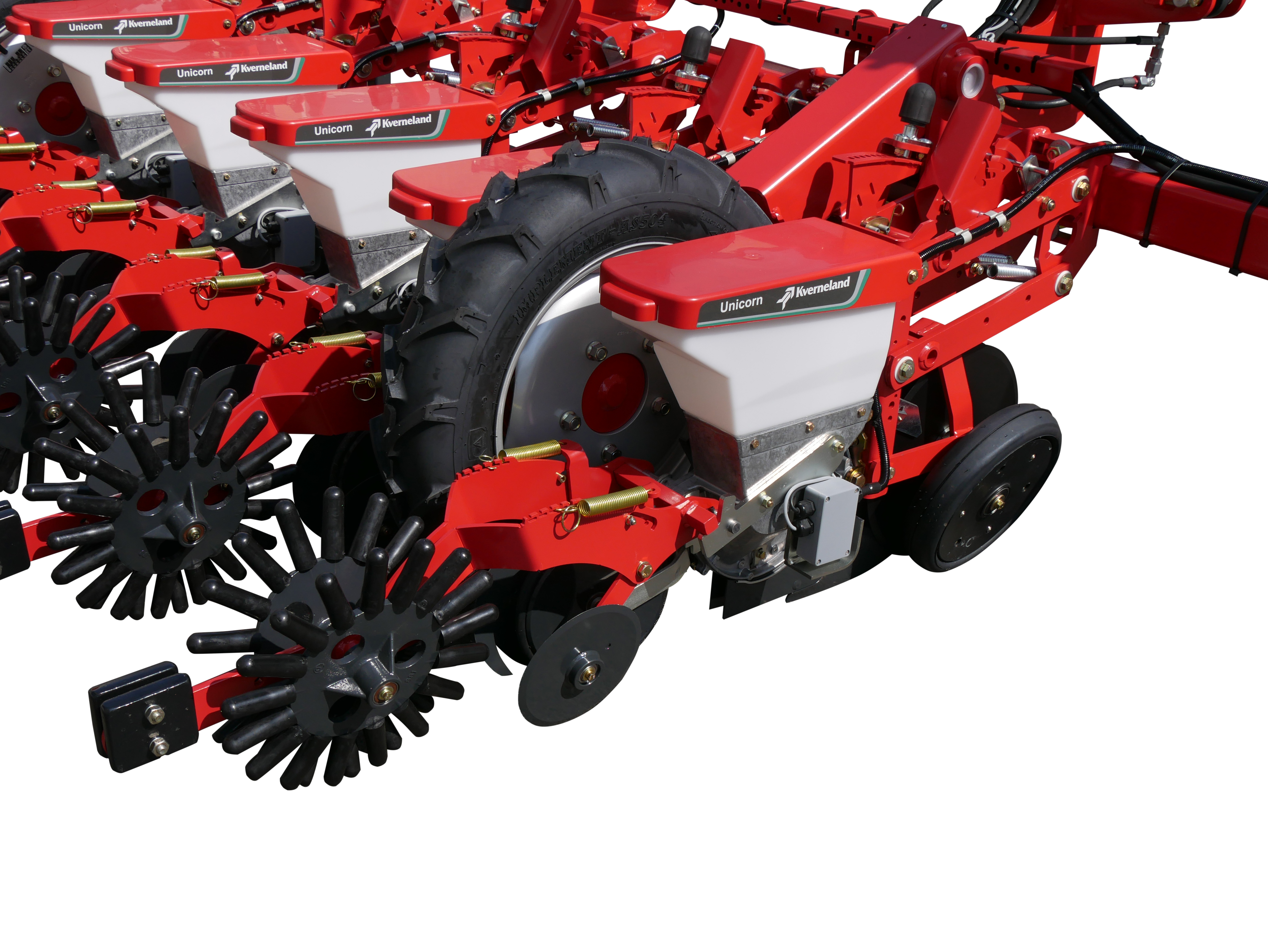

The Kverneland Unicorn e-drive II is the mechanical precision drill with the internally filled sowing heart for conventional or mulch sowing, with electrical drive and opto-electronic seed placement monitor.
Description

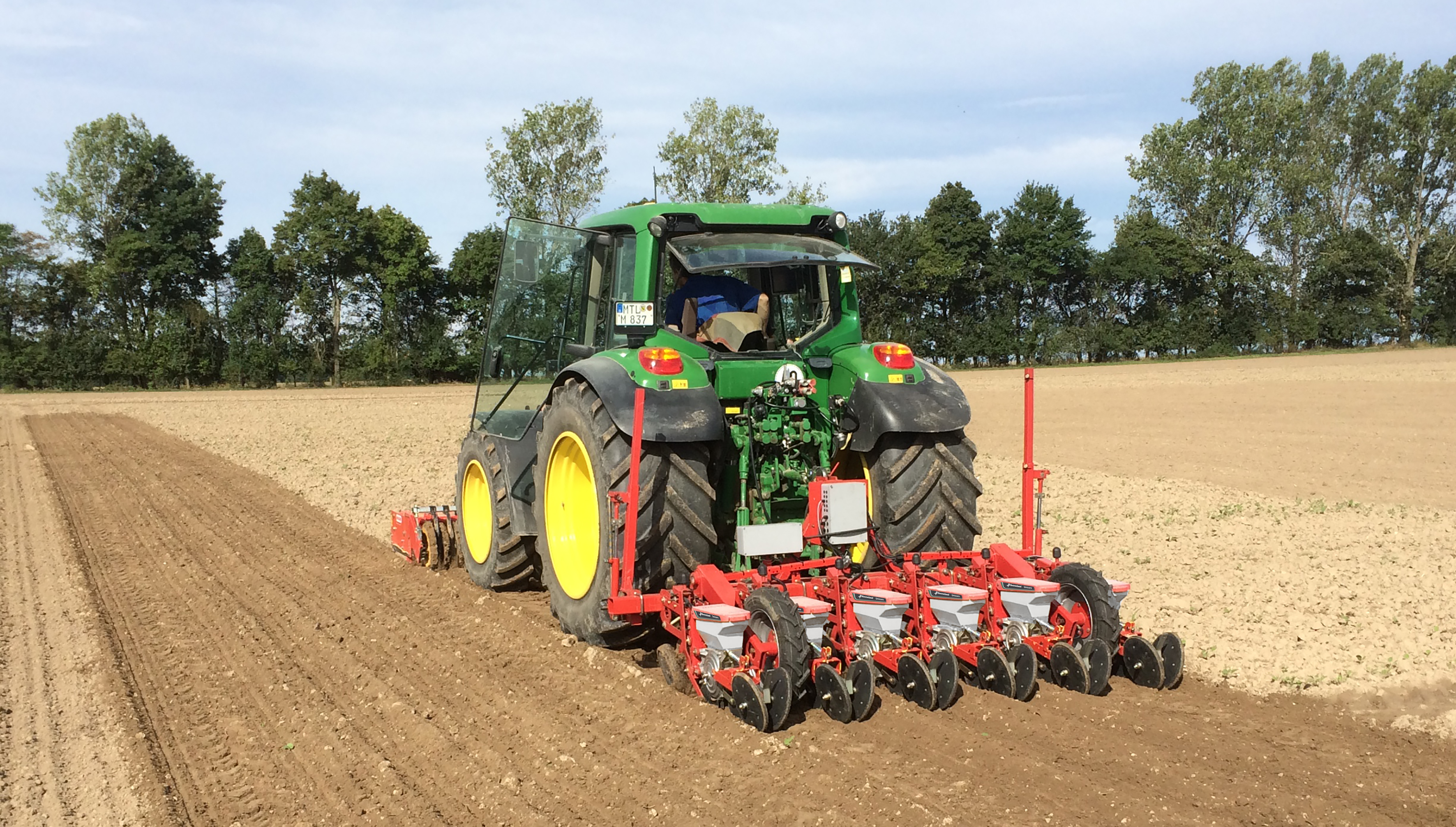

The Kverneland Unicorn has been designed for professional precision drilling. An electric driven row unit with mulch equipment is standard. Even under the most difficult conditions the parallelogram mounting of the sowing units guarantee precise depth control. The Unicorn ensures perfect seed placement in conventional and mulch conditions. With e-drive II each sowing unit is driven electrical individually. The sowing distances are infinitely adjustable on the move and can be switched off individually. The Unicorn is ready for GEOSEED and GEOCONTROL. Overlap seeding at headlands is a matter of the past and a synchronized sowing in line but also across the entire field is possible. The Kverneland Unicorn 6m parallel hydraulic frame has a close centre of gravity. Low lifting capacity and power requirement is needed. Changing from working to transport position ( 3m) is possible within a very short time.
Points forts
- Infinite adjustment of sowing distances from 12.5 to 25cm, optimising seed populations to soil type within the same field from the tractor cab.
- Multi choice integrated tramlining and pre-emergence marking systems (optional).
- Ability to increase plant population in the rows adjacent to the tramlines.
- Opto-electronic control for seed counting as standard.
- Individual sowing units can be switched off. Ideal, for example, when sowing in the corner of awkward shaped fields.
- Safety through constant control: the electronics permanently monitor all operating functions of each sowing unit constantly displaying the "real time" data on the in cab terminal.
- ISOBUS Intelligence with Unicorn e-drive II
Caractéristiques techniques
Caractéristiques techniques
Télécharger la documentation| Model | Unicorn | Unicorn | Unicorn | Unicorn | |
|---|---|---|---|---|---|
| Frame | rigid | rigid | rigid | rigid | |
| Working width (m) | 3.0 | 6.0 | 9.0 | 12.0 | |
| No. of rows | 6 | 12 | 18 | 24 | |
| Row width (cm) | 45/50 | 45/50 | 45/50 | 45/50 | |
| Transport width (m) | 3.0 | 3.0 2) | 3.0 2) | 3.0 2) | |
| Weight for basic version(kg) | 400 | 910 | 1,75 | 2,8 | |
| e-drive II, ready for GEOSEED® | Standard | Standard | Standard | Standard | |
| IsoMatch Tellus Pro | Option | Option | Option | Option | |
| IsoMatch Tellus Go+ | Option | Option | Option | Option | |
| Radar | Standard | Standard | Standard | Standard | |
| Linkage | CAT. II | CAT. II | CAT. III | CAT. III | |
| Tyres 5.00x15 | Standard | Standard | Standard | Standard | |
| Hyraulically operated track marker arms | Standard | Standard | Standard | Standard | |
| Pre-emergence markers | Option | Option 1) | Option 1) | Option 1) | |
| Road light kit | Option | Option | Option | Option | |
| Track eradicator (2x2 tines) | Option | Option | Option | Option | |
| Hydr. frame ballasting kit | Option | Option | - | - | |
| Lengthwise transport device | - | Option | Option | Option | |
| Microgranule applicator | Option | Option | Option | Option | |
| Microgranule hopper volume (l) | 35 | 35 | 35 | 35 | |
| No. of microgranule hopper | 2 | 4 | 6 | 8 |
1) Risk of collision of pre-emergency marker and lengthwise transport devise
2) Lengthwise transport device
